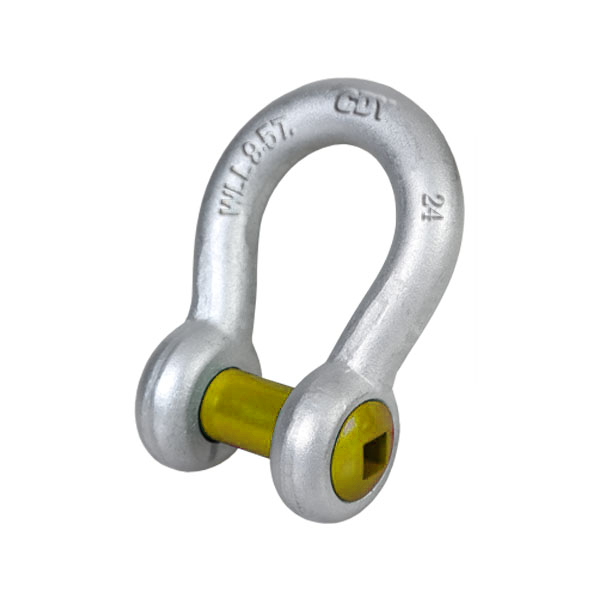

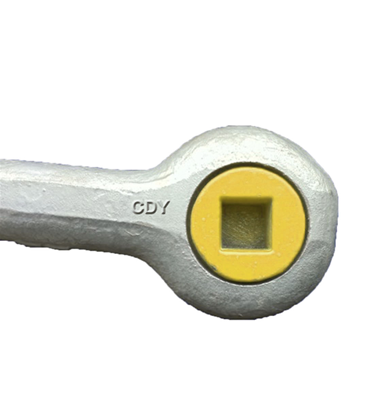

SQUARE HOLE PIN ANCHOR SHACKLES
• Square Hole Pin Anchor Shackles
• Maximum Proof Load is 2 times the working load limit.
Minimum Ultimate Load is 6 times the working load limit.
• Capacities 2 thru 35 metric tons.
• Forged - Quenched and Tempered, with alloy pins.
• Working Load Limit permanently shown on every shackle.
• Hot Dip galvanized or self colored.
• Fatigue rated.
• Test and mill Certificates are available upon request.
A shackle is a u-shaped, load-bearing connecting device designed to be used with a removable pin. Shackles can be used in a number of different rigging and load securement applications to connect different types of lifting slings, chain, or rope to an object or to each other.
There are four parts of shackle: bow pin, ear, shoulder.
Shackles connect slings, rigging hardware, chain, lifting devices, load cells, and other items to loads being lifted or pulled.
Screw Pin and Bolt Type Shackles
Shackles connect slings, rigging hardware, chain, lifting devices, load cells, and other items to loads being lifted or pulled. Dayu Riggin is one of the largest (stocking distributors) factory of shackles in China and can supply shackles from 1/3 ton to 150 tons. We offer a wide variety of shackles including U.S /GRADE S/shackles ,to cover many different applications including Galvanized or Self Colored, Carbon or Alloy, and Screw Pin , Bolt type, Anchor, Chain. There are also new shackles available to match the type of sling you need them to couple with. There are chain shackles available for use with chain slings. For cold work environments DAYU’ Cold Shackles are Inorganic Zinc Primer or Hot Dipped Galvanized, suitable for use to -50F, and have type approval and certification .. If you have any questions about proper use and inspection of shackles, or if you need help figuring out which type of shackle will best meet your needs our experienced sales team is here to help. Call them at 86 18678963298 or email them at service@dayusuoju.com.

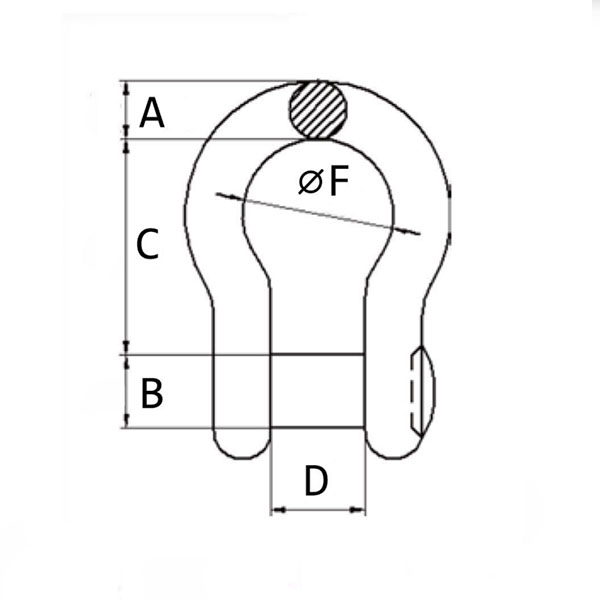

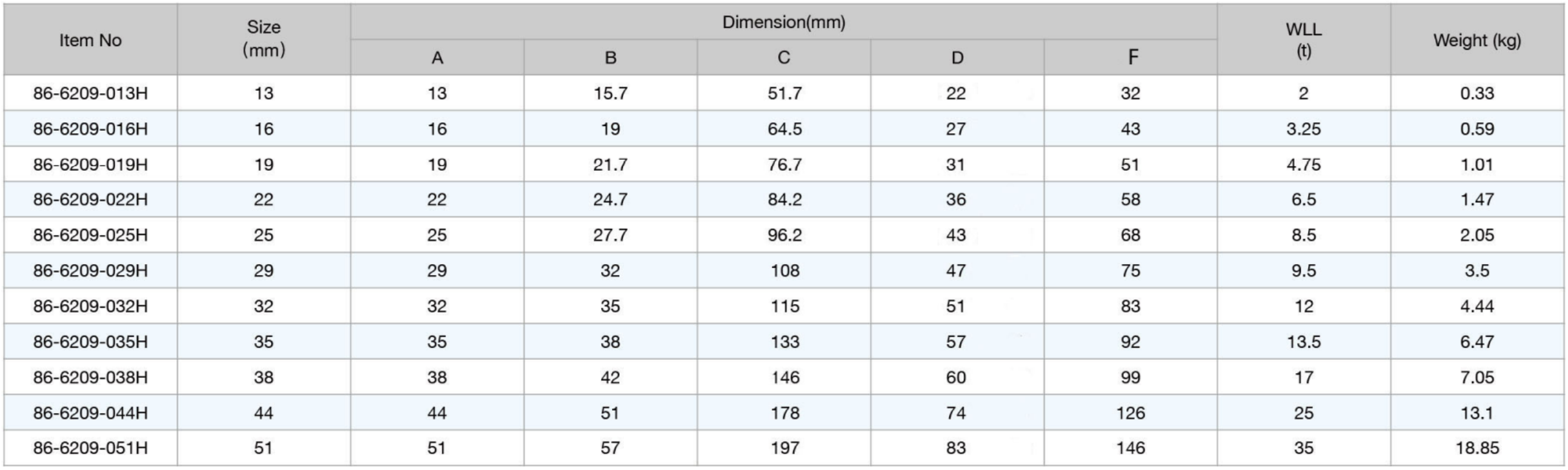

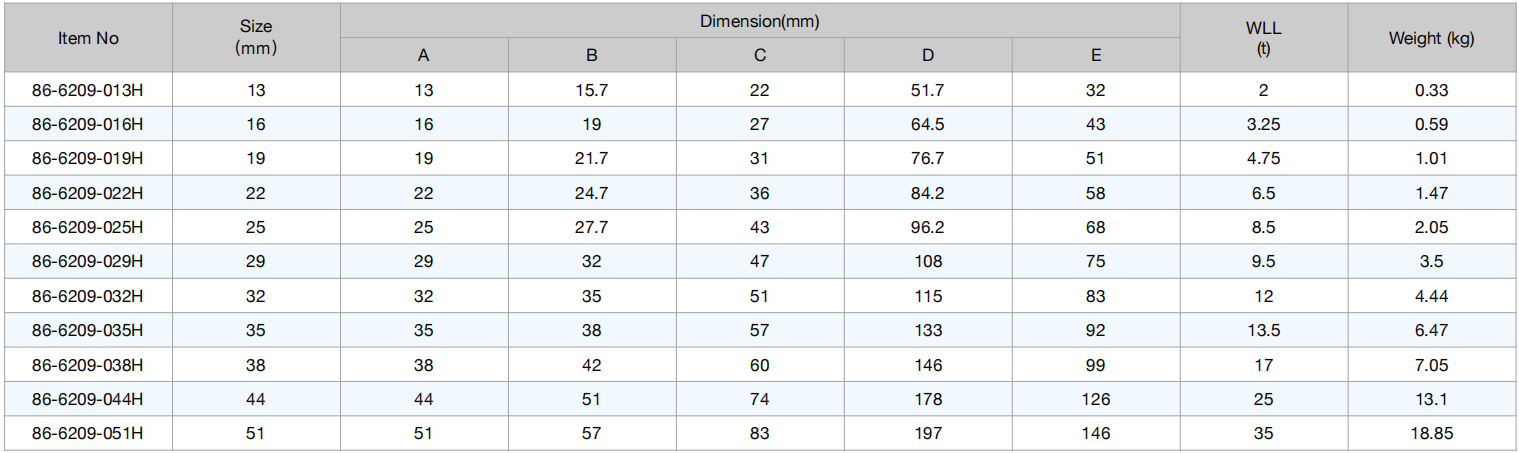

Parameter
