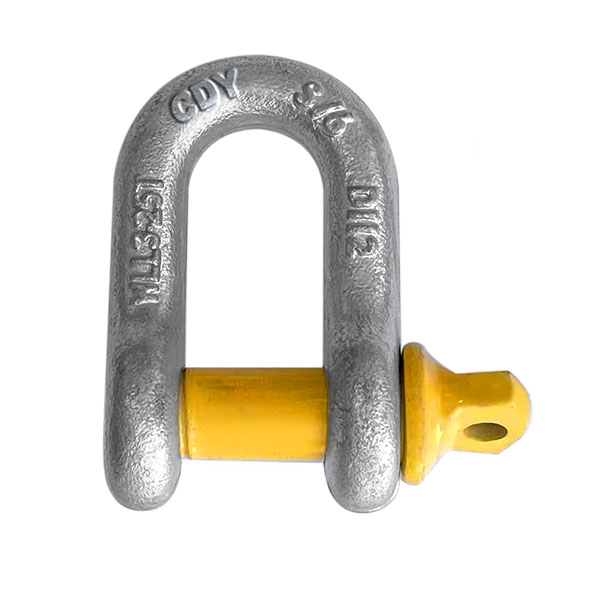

GRADE S D SHACKLES WITH SCREW PINS
• Screw Pin Dee Shackles
• Conforms to AS2741-2002 manufactured from Grade “S” material
Complies with Federal Specification RR-C-271F Type IVB, Grade A, Class 2
• All shackles undergo a stringent quality control process using ISO9001 and batch testing.• Maximum Proof Load is 2.2 times the working load limit.
Minimum Ultimate Load is 6 times the working load limit.

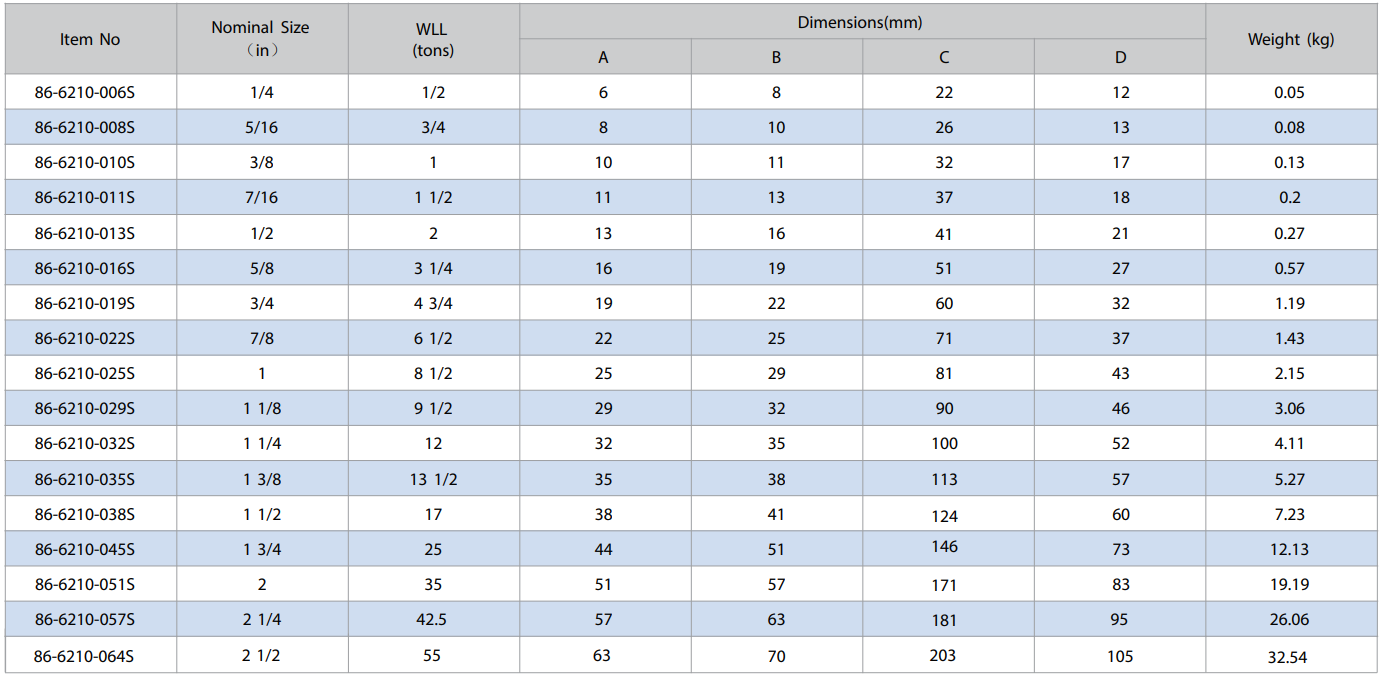

• Capacities 1/2 thru 55 metric tons.

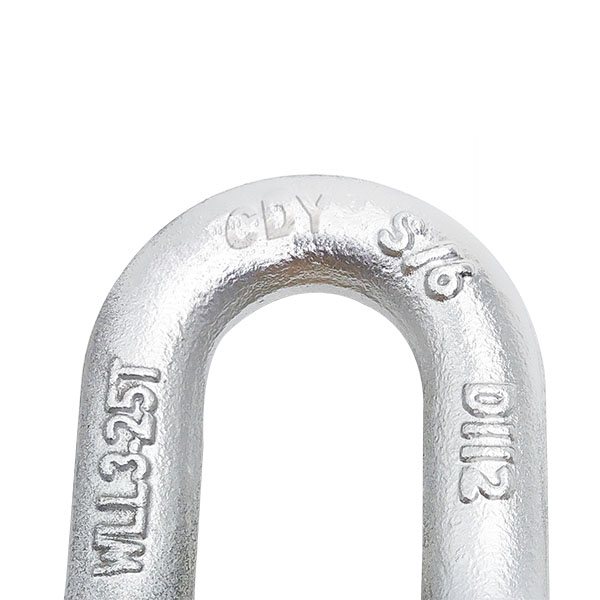

• Shackles are marked with WLL, Brand Name, Grade, nominal size, and Batch.

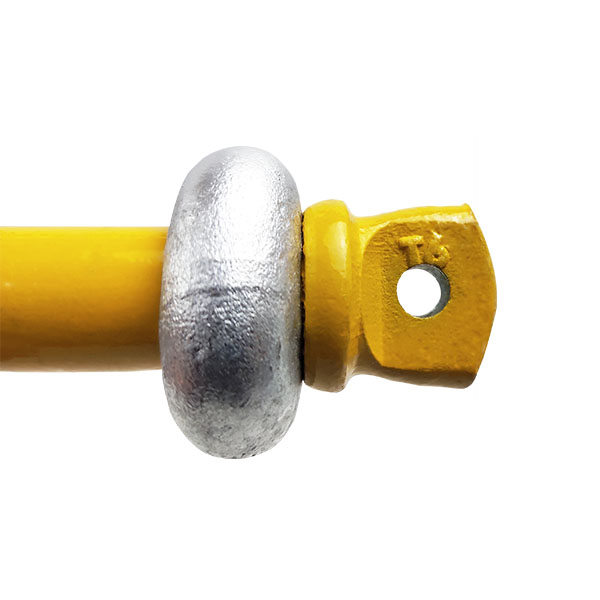

Pins are marked with T6.
• All shackles are batch marked for traceability from manufacture to point of sale.• Forged - Quenched and Tempered, with alloy pins.
• Hot Dip galvanized or self colored.
• Test and mill Certificates are available upon request.
